OBD2 Breakout Box Automotive Advanced OBDII Protocol Detector with LCD Display LED Indicator 16Pin CAN Breakout Box Diagnostic Tool for Power Car ECU Use with ScannerMultimeterOscilloscope

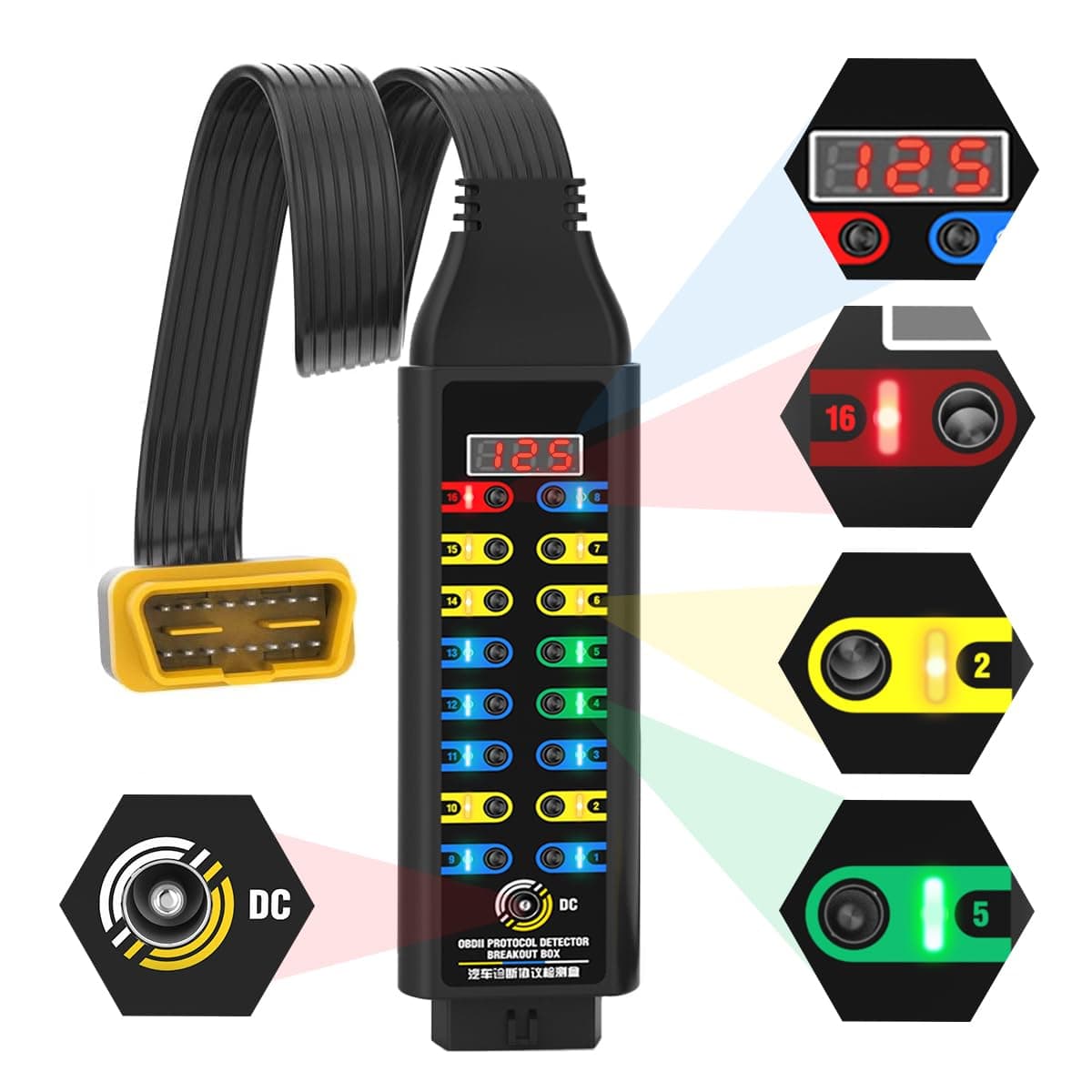

Upgraded OBD2 Breakout BoxThis is an OBDII protocol detector designed for diagnosing the 12V car OBDII data line It provides easy access to the vehicles OBDII system The LED lights of different colors and voltage display on the OBD2 breakout box allow convenient and safe monitoring of the protocol power and ground signals This breakout box automotive can be connected to an OBDII code reader multimeter or oscilloscope for further testing when unconfirmed signals are detected OBD2 CommunicationSignal Power Supply Grounding DetectionBreakout box automotive can help you measure whether the communication signal such as Kline Lline CAN bus and PWM protocol line power supply and grounding of the vehicle OBDII interface are normal CAN breakout box not only can detect 12V car signal but also can detect some of 12V diesel vehicle signal It is perfect for people who likes diagnosing and modifying cars Note The breakout box is used on 816V vehicles 3color LED Indicator of OBDII Breakout BoxThe LED lights on the OBD2 breakout box can quickly indicate whether the communication power and grounding of the cars OBDII interface are normal Yellow LED Pin 267101415 lights up to indicate that the OBD2 scanner is communicating with the vehicle and the pins have signal waveforms Green LED Pin 45 lights up to indicate that car body is properly grounded Red LED Pin 16 lights up to indicate that the power supply is normal Voltage Display Power ECU when Replacing BatteryOur OBD2 breakout box is equipped with a voltage display to help you constantly monitor the battery voltage Breakout box also comes with a DC power jack and a 12V battery alligator clip Before replacing the battery you can use the breakout box automotive to connect the DC 8V16V auxiliary power supply to sustain the power supply to the vehicle to prevent data loss audio lockup or malfunctions of the ECU control module due to power failure 16Pin Jack Layout Design for All 4mm Banana PlugThe input jack layout of OBDII breakout box fully simulates the 16pin layout of the OBDII interface allowing more tests to be performed quickly and intuitively You can easily access each of the 16 pins while OBD2 scanner communicating with vehiclesThe builtin input jack can be connected to all types of 4mm banana plug You can connect a multimeter or an oscilloscope to the banana jack to further detect the detailed signal information High Elasticity High Flexibility 18inch Extension Cable 4 Sets of Universal Jumper WiresOBDII breakout box is equipped with a 18inch extension cable which is made of elastic thermoplastic TPU material with high elasticity high strength and high flexibility OBDII extension cable adopts multithread connection data technologywhich makes connection faster and smootherIt also is equipped with 4 sets of universal jumper wires with different plugs in 4 colors which can be wired flexibly 3Year Product ServiceWe aim at trying our best to offer you the best product and services to make you unworried beforeafter the purchase We promise 3year product service If you have any questions or doubts our professional technical team will help you solve the problem within 24 hours
