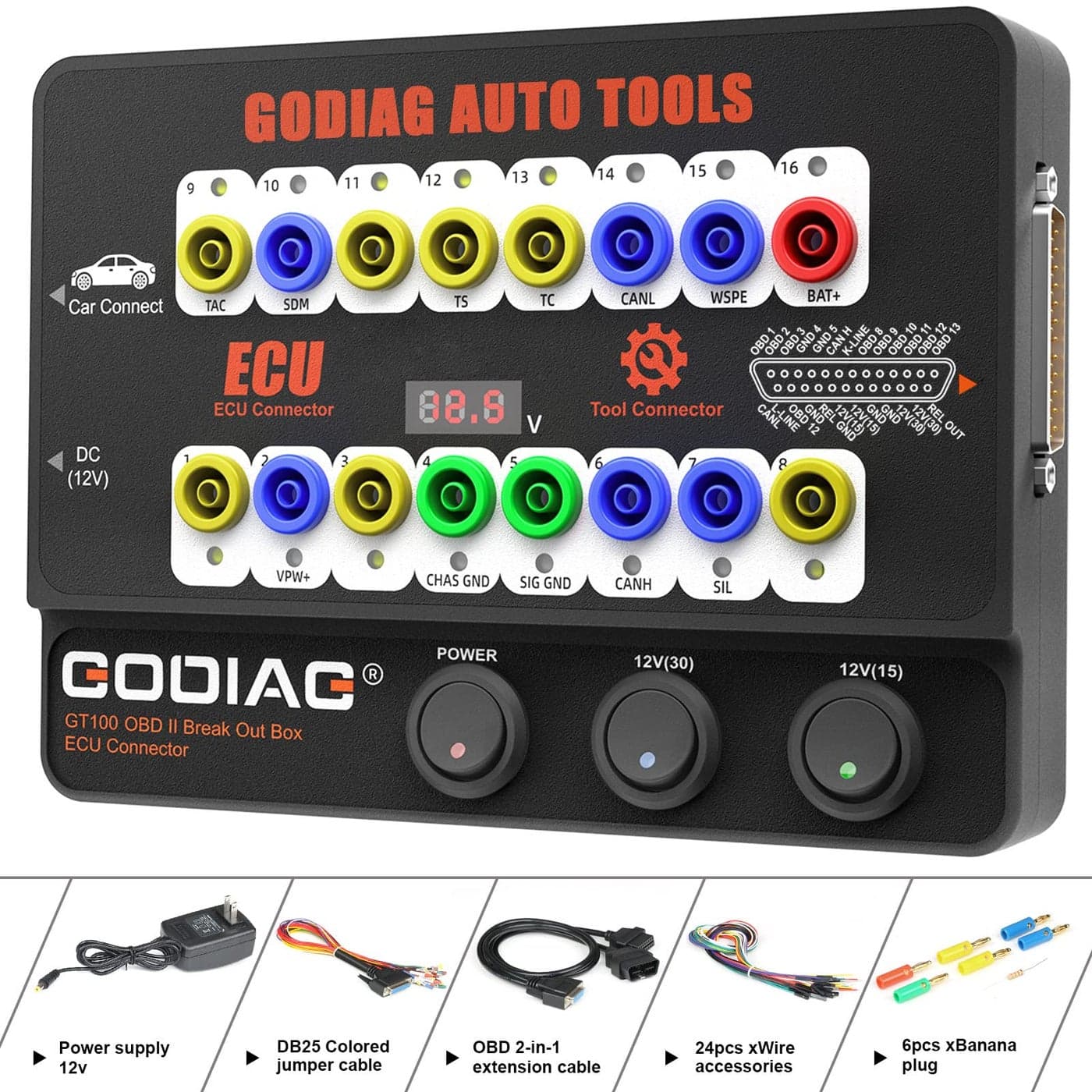

GODIAG GT100 Automotive Tools OBD II Breakout Box ECU Connector with OBD Main Line MultiFunction Jumper for Check Engine Support LED Indicator and Lookup

Sometimes we always worry about the lost car keys Use the GT100 to shortcircuit banana plug connector to lit up the dashboard In addition you can also connect with some test platform eg CASA to pragram keys GT100 allows you to power an ECU on the bench you can easily do diagnostics vehicle immobilizer and key programming whether it is on the bench with the included power adapter or in the vehicle with the OBDII port supplied power The input jack layout of OBD2 protocol detector fully simulates the 16pin layout of the OBDII interfaceallowing more tests to be performed quickly and intuitively When the OBD2 scanner communicates with vehicles all 16 pins of OBDII breakout box can be easily connected OBD2 breakout box has female connector and male connector with a 12m extension cable Through GT100 OBDII Breakout Box before replacing the battery to sustain the power supply to the vehicle which will ensure that the car has fully power to prevent data loss and audio lockup or the malfunction due to lack of power to the ECU control module The GODIAG GT100 can not only be connected to a single ECU module for singlemodule diagnosis and programming but is also capable of connecting multiple ECU control modules at the same time You can connect the ECU with the color jumpers If the ECU is CAN protocol please check whether you will need to connect a 120 ohm resistor It can convert the car OBD2 interface into 16 pin for signal detection and electrical level conversion Use the connector to convert the OBD1 interface into obd2 interface according to the diagnostic interface communication protocol
